Ultra-High-Definition Indoor Commercial Fine-Pitch LED Display
Hidden Wiring Design
High-Definition Display: Deep color gamut, high color depth, high contrast, and HDR support.
Dual Backup: Dual signal and power backup for enhanced stability and reliability.
The Visionreal VF Series features advanced SMD technology for superior color accuracy and brightness, ensuring clear and vibrant visuals in indoor environments. Built for fixed installation, it offers seamless performance, durability, and energy efficiency, making it perfect for a wide range of commercial applications, including retail displays, corporate signage, and more.

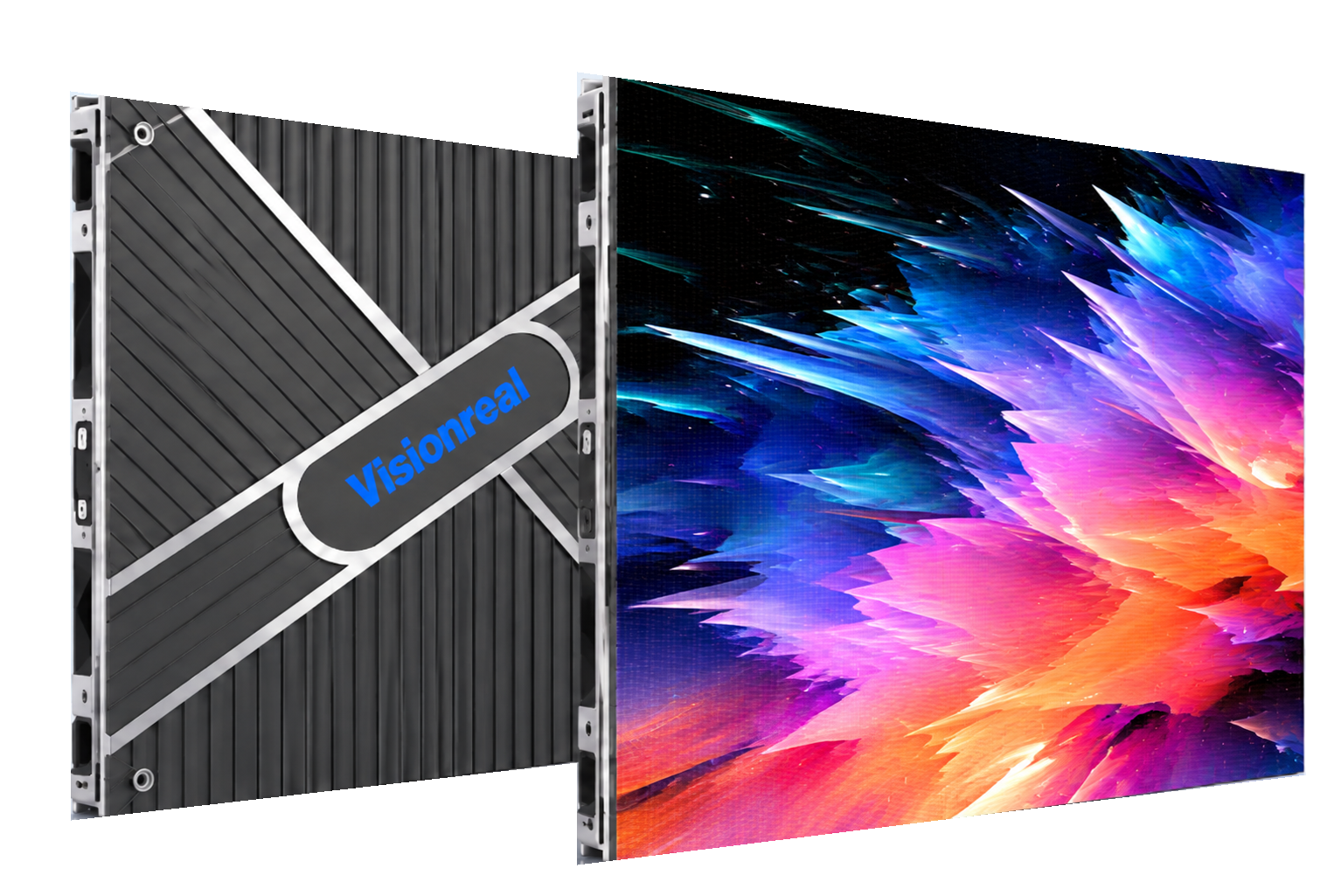

Precision COB Series™ Series | Ultra-Slim High-Protection Indoor COB LED Display
Visionreal Precision COB Series™ is designed for indoor fixed LED display projects that require refined image quality, high protection and a clean architectural finish. COB technology integrates the LED chips directly into the display surface, eliminating exposed LEDs and providing enhanced resistance to impact, dust and moisture. The smooth, durable surface is easier to clean and better suited to high-traffic commercial environments. With an ultra-slim 33 mm cabinet and high-precision structural design, the Precision COB Series™ delivers excellent flatness and seamless screen alignment while minimizing installation depth. Its streamlined cabinet structure also supports efficient installation and front maintenance. Ideal for corporate showrooms, conference rooms, control rooms, broadcast studios, luxury retail spaces and other premium indoor applications.
1. Pixel Pitch: P0.9mm, P1.2mm, P1.5mm, P1.8mm
2. Easy front service and front installation.
3. High-protection COB display surface
4. Impact resistant with no exposed LEDs
5. Ultra-slim 33 mm cabinet, ultra-flat and seamless screen alignment
6. Clean appearance for architectural integration, designed for long-term indoor fixed installation

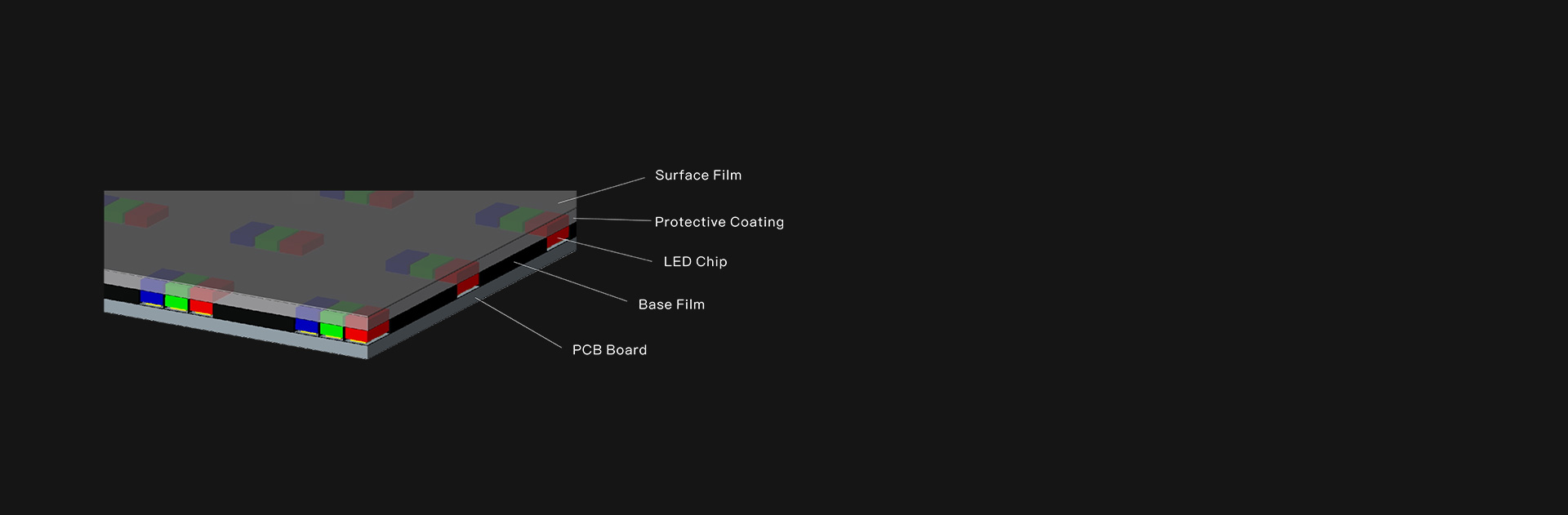

Durable & Reliable COB Packaging

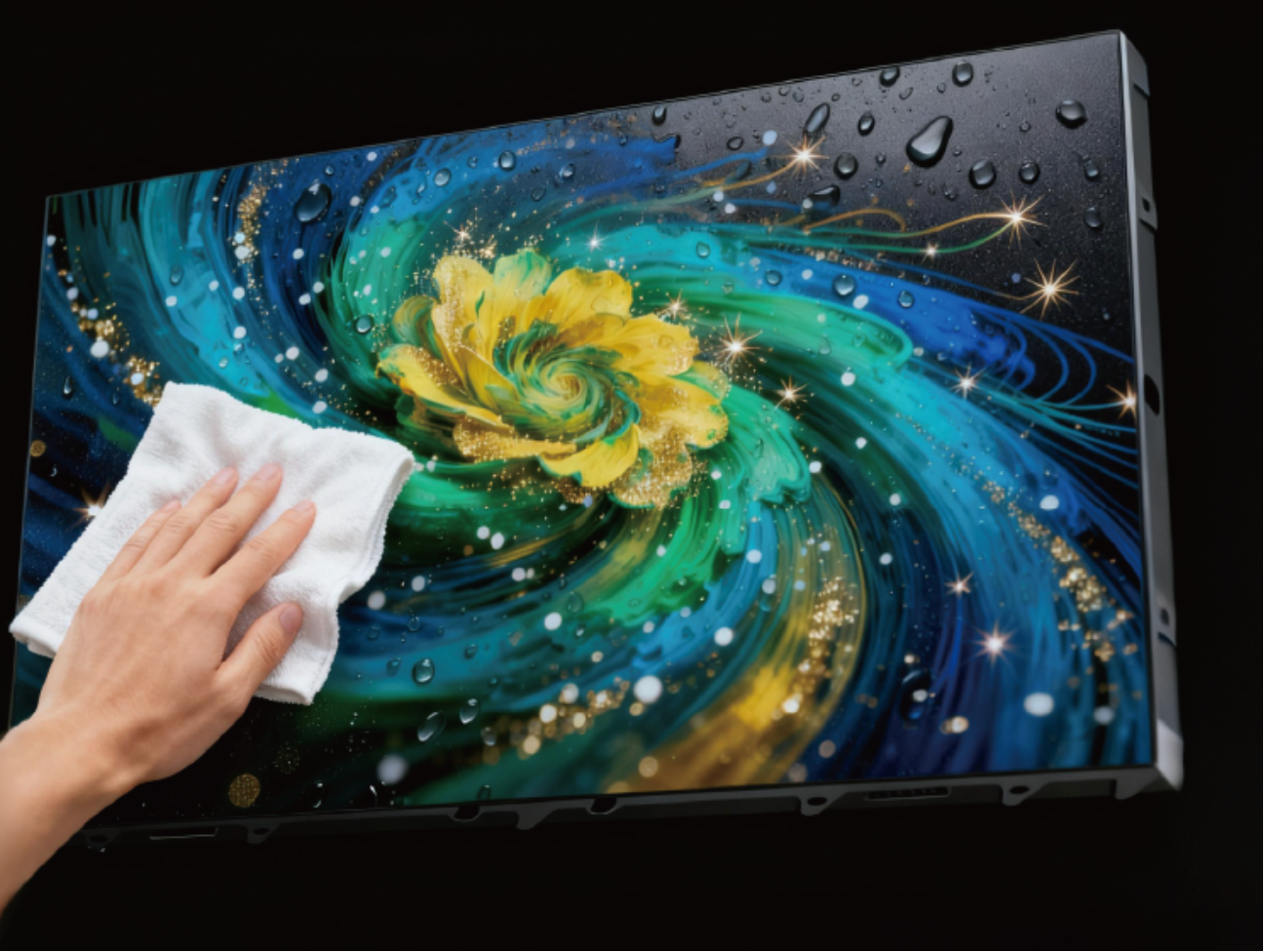

Meets IP65 standards, offering water, dust, and impact resistance, and more. The surface can be wiped with a soft cloth, making it durable and easy to clean.
Lower Power Higher Efficiency
Utilizes 3D ink color printing technology to increase luminous efficiency by 20%, reducing power consumption by 20% at the same brightness level.
90 degree design, Seamless right-angle installation
Built around 90 degree design, Seamless right-angle installation, the VF series Indoor Fixed Installation LED Display excels at corner setups. It features a 90-degree cabinet design that enables smooth right-angle connections. This design eliminates gaps when the LED product is installed at corners. For indoor spaces with angular walls, it creates continuous, cohesive visuals.
Beyond flat layouts, this LED Display adapts to cornered areas without breaking display continuity. Its seamless right-angle fit adds flexibility to indoor installation configurations.
| Item | VF-121 | VF-151 | VF-181 | VF-251 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.53 | 1.86 | 2.5 |
| Pixel Density (dot/m²) | 640,000 | 627,716 | 288,369 | 160,000 |
| Led Module Size | 320x160mm | |||
| Panel Dimension (mm) | 640x480mm | |||
| Resolution/Panel (dot) (w*h) | 512x384 | 416x312 | 344x258 | 256x192 |
| Weight (kg/set) | 6KG | |||
| Brightness(cd/m²) | 600-800 cd/m² | |||
| Lifespan | ≥ 100,000.00 hours | |||
| Pixel Configuration | 14bit | |||
| Maximum Power Consumption (w/m²) | 700 | |||
| Average Power Consumption (w/m²) | 250 | |||
| Control System | Novastar | |||
| Input Voltage | AC100~240V 50/60Hz | |||
| Working Temperature | Temperature -20℃ ~55℃ | |||
| Working Humidity | Humidity 20%RH ~ 90%RH (Without Condensation) | |||
| Storage Temperature | Temperature -20℃ ~60℃ | |||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | |||
| Protection Degree | IP65 | |||
| Frame Material | Die-casting aluminum | |||
| Installation Environment | Indoor | |||
| Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice. | ||||
