Vwind series

  • Spatial floating image

    3D Holography, Spatial floating image

  • Ultra-high transparency

    No splicing structure, full screen transparent invisible

Vwind series

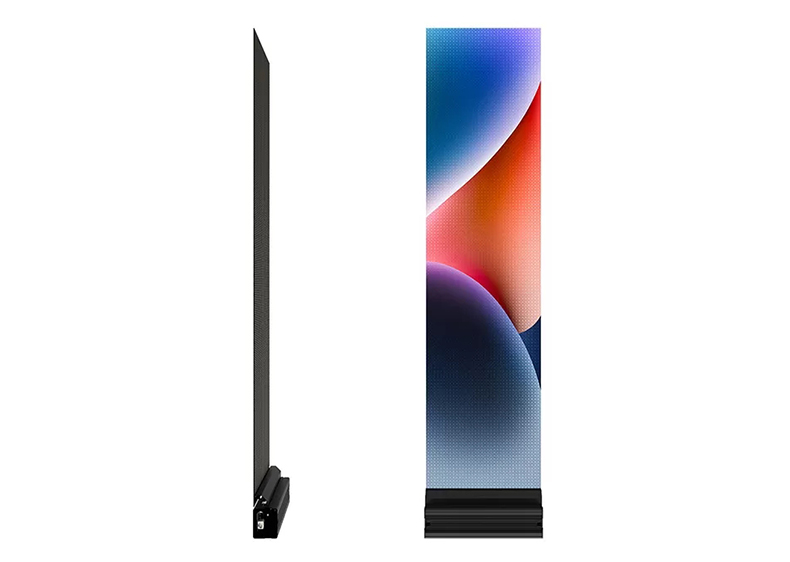

Visionreal Holographic Transparent Led Display (Ahesive to Glass Wall)
Pixel pitch (mm):P2.5/P3.9/P6.25/P10
Module dimensions (mm):125×1000/250×1000/250×1175/250×1000
Transparency Rate:70%~90%
Brightness(cd/m²):2000 ~ 5000

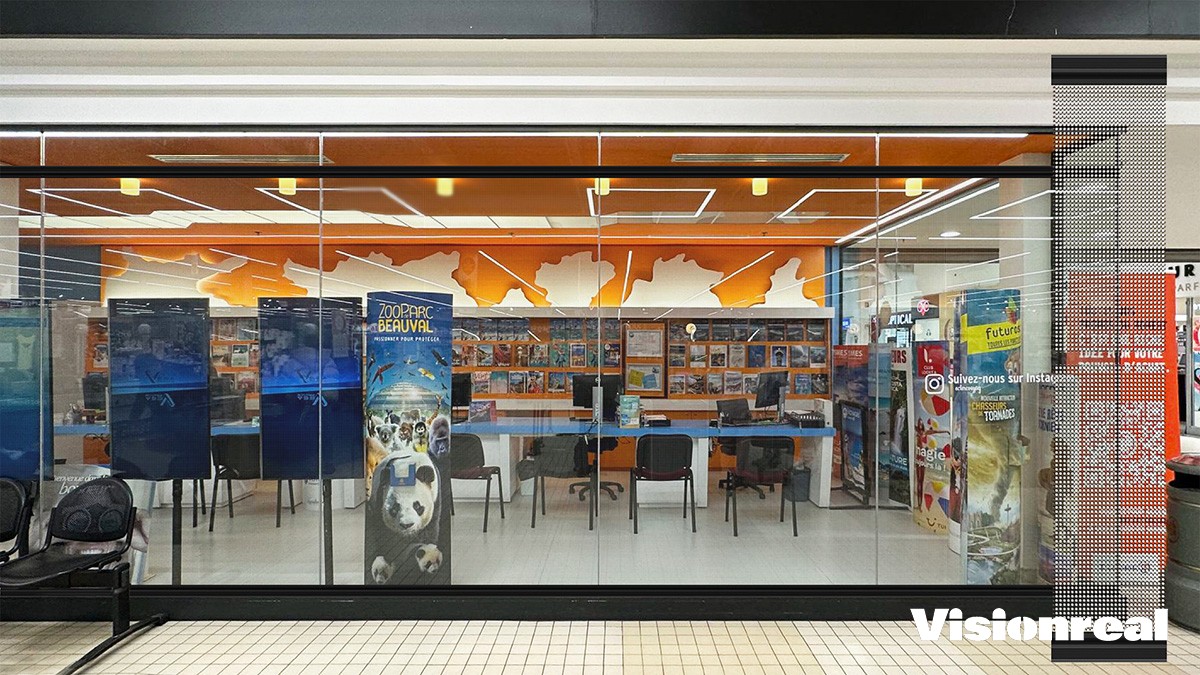

The display module is transparent and invisible, without any obstruction to sight and lighting!

85~95%Visual permeability 85~95%


160,000 pixels per square meter, TV-quality invisible screen

TV-quality invisible screen、Near visual range transparent invisible display

Large area no splicing structure, transparent display accounted for more than 95% of the full screen!

Invisible display panel, seamless large area splicing, full screen transparent without frameM-03

High quality, stable picture, rich and delicate color!

Horizontal and vertical pixels equal spacing, lamp drive integration static scanning, 16bit gray level

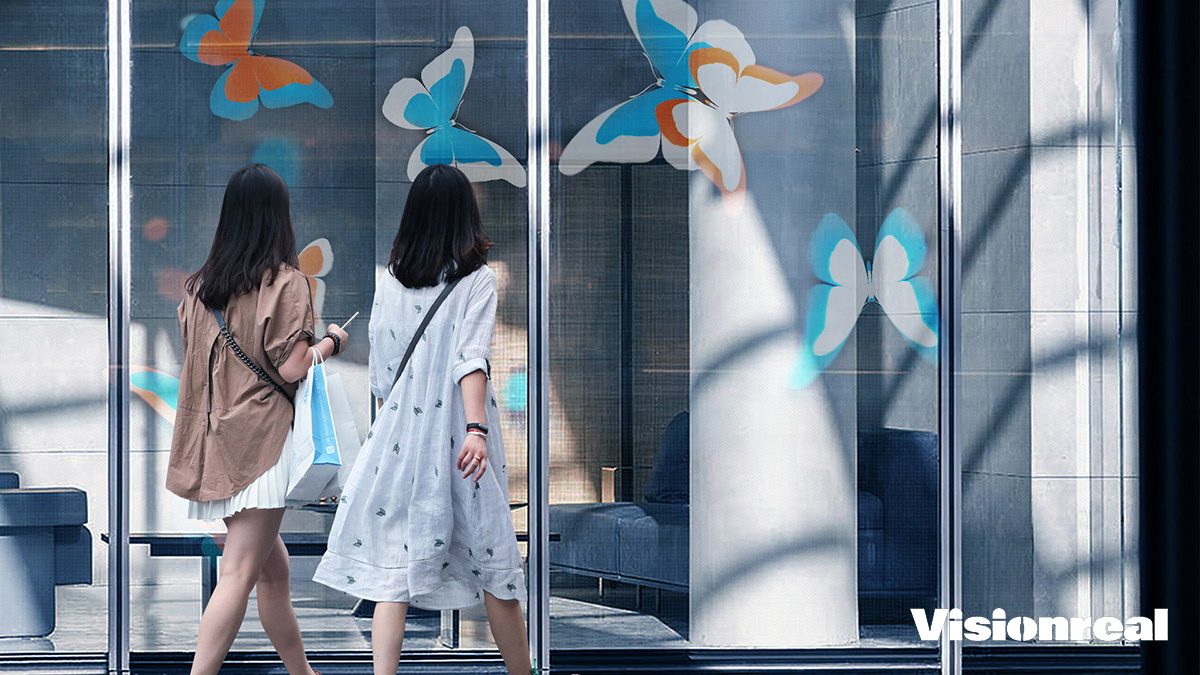

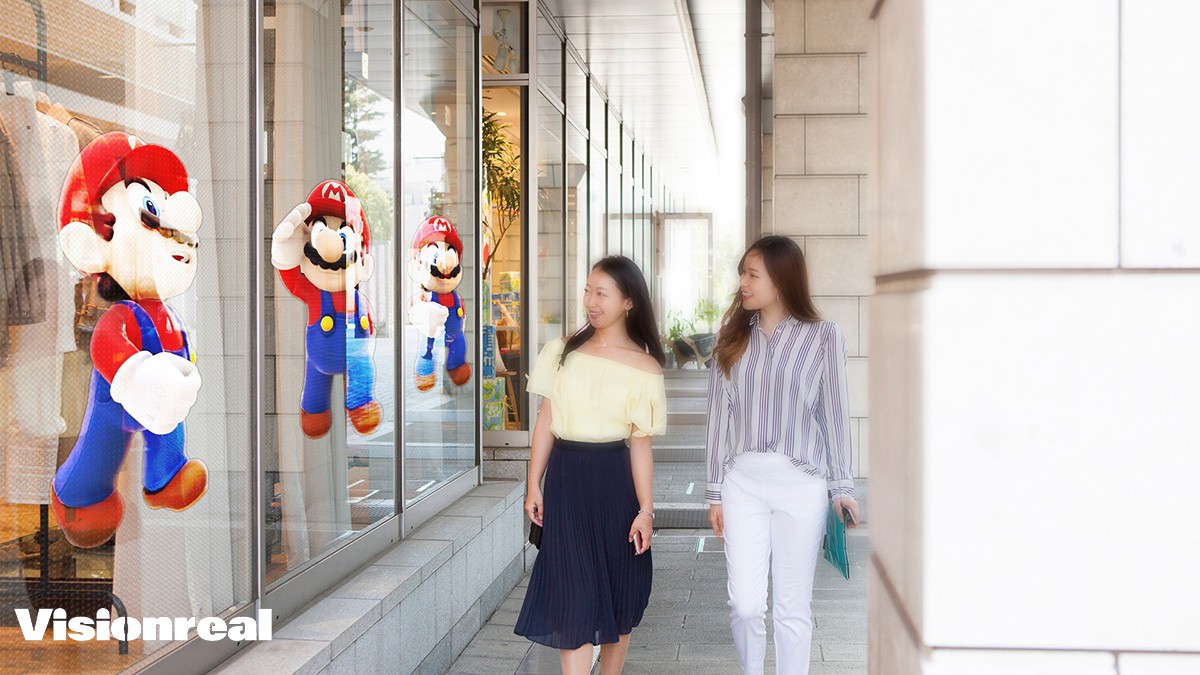

Immersive floating imagery, naked-eye AR commercial display experience


High brightness 5000cd/㎡, 9000:1 high contrast

Light 6kg/ ㎡, Thin 1.8mm


Flexible bendable module, best partner for curved and shaped glass


 Specification parameters

Pixel Pitch (mm)
(horizontal / vertical)
2.5/2.53.91/3.916.25/6.2510 / 10
Pixel Density (dot/m²)160000655362560010000
Transparency Rate70%80%90%85%
Display Dimension
(mm) (w*h)
Profile Dimension
(mm) (w*h)
Resolution (dot) (w*h)50x40064x256/64x30040x188/40x23625x120
Weight (kg/set)1.631.61.61.2
Scanning ModeStatic Driving (Single Pixel Single Control)Static Driving (Single Pixel Single Control)
Encapsulation TypeLight Board & Driving Board Integrated Light Board & Driving Board Integrated
Lifespan≥ 100,000.00 hours≥ 100,000.00 hours
Pixel Configuration16bit16bit
Maximum Power Consumption (w/m²)800100010001000
Average Power Consumption (w/m²)300375375375
Control SystemColorlight / NovastarColorlight / Novastar
Input VoltageAC100~240V 50/60HzAC100~240V 50/60Hz
Working Voltage for ModuleDC4.2V ±0.2VDC4.2V ±0.2V
Working TemperatureTemperature  -20℃ ~50℃ Temperature  -20℃ ~50℃
Working HumidityHumidity 20%RH ~ 85%RH (Without Condensation)Humidity 20%RH ~ 85%RH (Without Condensation)
Storage TemperatureTemperature -20℃ ~60℃ Temperature -20℃ ~60℃
Storage HumidityHumidity 10%RH ~ 85%RH (Without Condensation)Humidity 10%RH ~ 85%RH (Without Condensation)
Protection DegreeIP20IP20
Frame Material//
Installation EnvironmentIndoorIndoor
Packing WayPearl Cotton+Wooden Case/AirboxPearl Cotton+Wooden case/Airbox
Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice.

 Product dimension table

 Product Topology
