Full-Scenario Outdoor LED Display
Various led screen shape solutions

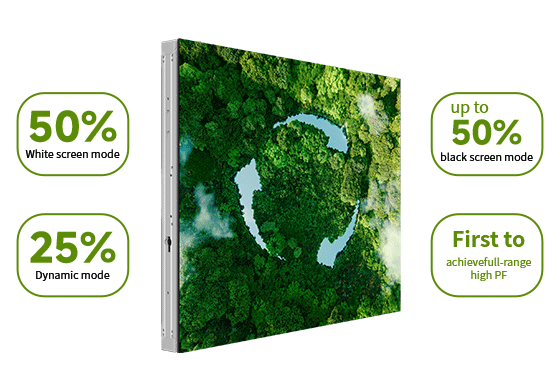

Energy saving, Less than 1 KWH/SQM per day
＞50% energy saving compare with standard solutions Energy savings offset costs in as little as 5 years.
Efficient Heat Dissipation, Reduced Carbon Emissions
High-efficiency heat dissipation design , combine with die-cast aluminum module and case , can achieve rapid and even heat dissipation without additional cooling equipment, significantly reducing energy consumption and carbon emissions.
VA Series | Full-Scenario Outdoor LED Display Coverage

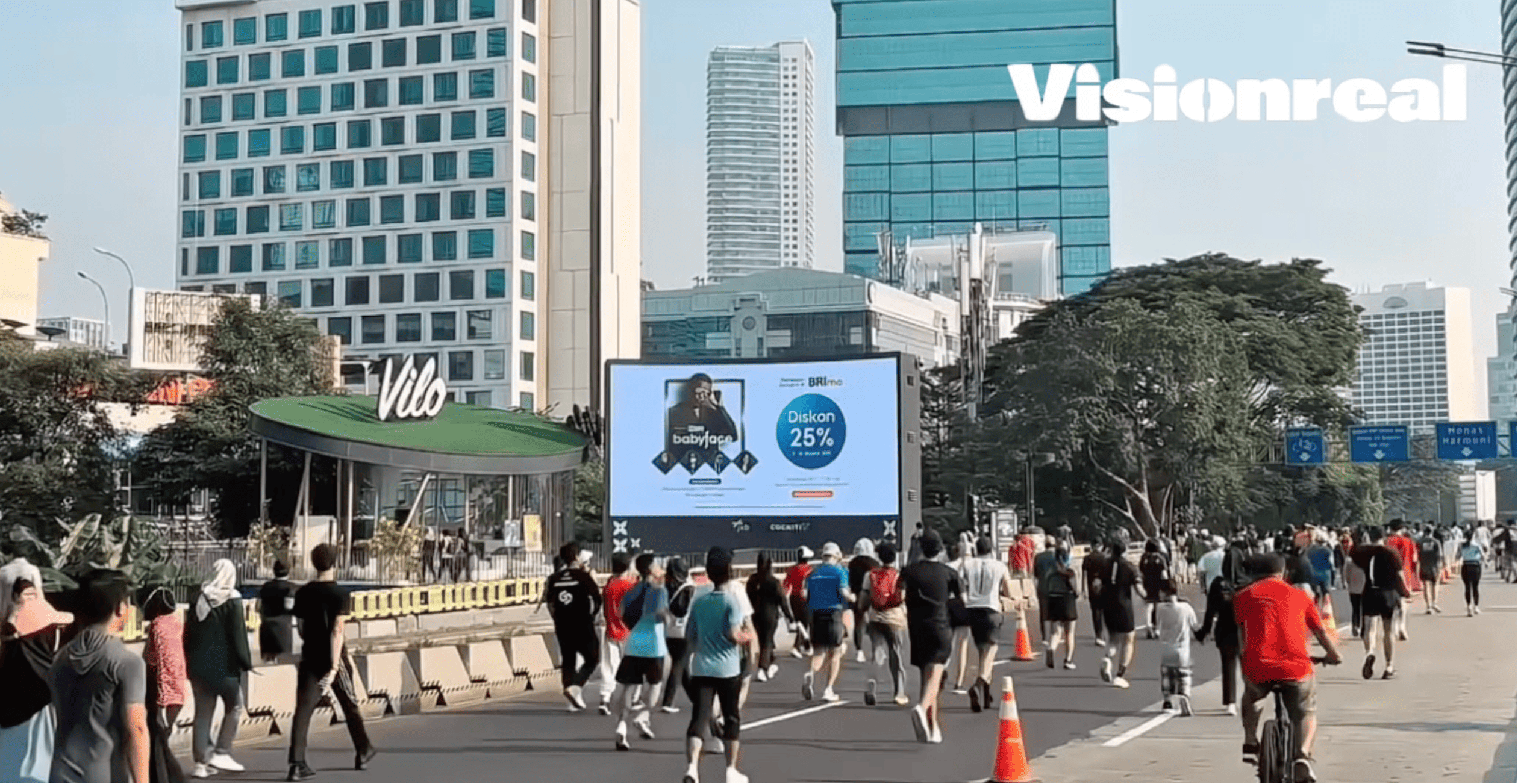

1. Cost effective solution for DOOH applications: flat, concave/inner curve, convex/outer curve, customized angle, cube shape, etc. Only sky is the limited.
2. Completed Pixel Pitch Solution: P2.5mm, P2.9mm, P3mm, P4mm, P5mm, P6mm, P8mm, P10mm, P16mm
3. High brightness 6,000nits to 8,000nits, workable for day and night.
5. Various cabinet size : 960x960mm, 480x960mm, 640x960mm，960x1280mm, etc. use friendly for various projects.
High Definition Display to Show the Real World
3840-7680hz refresh rate for high dynamic range pictures.
14bit grayscale for smoother color transition
110% color gamut to show each detail vividly

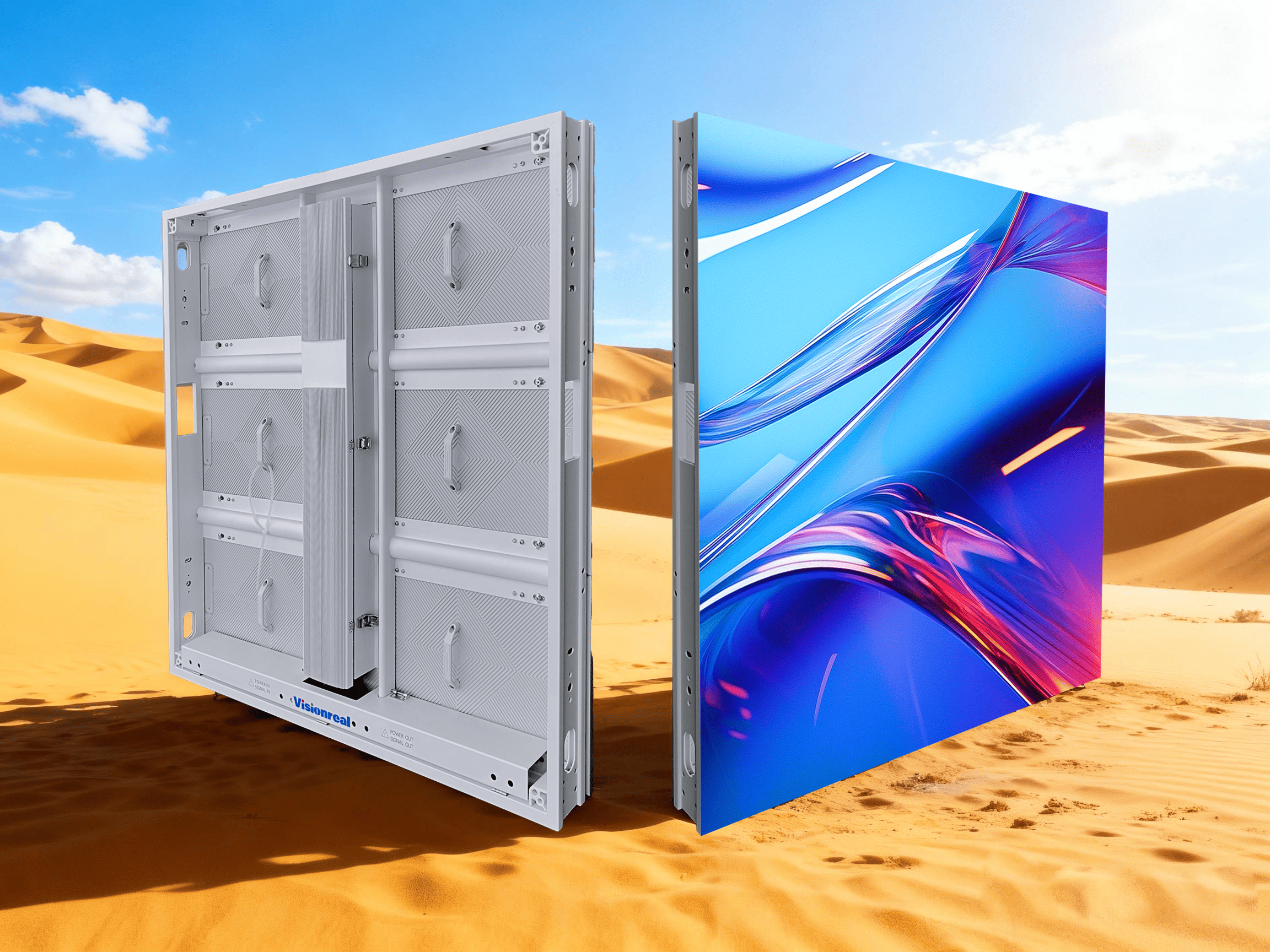

Solid water resistant performance even in extreme weather
IP65 waterproof level can ensure stable operation of the screen even in extreme weather below：Typhoon、Rainstorm 、High Temperature 、Low Temperature 、High Humidity 、Salt Spray
| Item | VA-250 | VA-290 | VA-300 | VA-400 | VA-500 | VA-600 | VA-800 | VA-100 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.5 | 2.9 | 3.03 | 4 | 5 | 6.66 | 8 | 10 |
| Pixel Density (dot/m²) | 160,000 | 112,896 | 108,900 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Led Module Size | 320x160mm | |||||||
| Panel Dimension (mm) | 960x960mm or customized size | |||||||
| Resolution/Panel (dot) (w*h) | 384x384 | 323x323 | 316x316 | 240x240 | 192x192 | 144x144 | 125x125 | 96x96 |
| Weight (kg/set) | 30 | |||||||
| Brightness(cd/m²) | 5500-10,000 cd/m² | |||||||
| Lifespan | ≥ 100,000.00 hours | |||||||
| Pixel Configuration | 14bit | |||||||
| Maximum Power Consumption (w/m²) | 800 | |||||||
| Average Power Consumption (w/m²) | 287 | |||||||
| Control System | Novastar | |||||||
| Input Voltage | AC100~240V 50/60Hz | |||||||
| Working Temperature | Temperature -20℃ ~55℃ | |||||||
| Working Humidity | Humidity 20%RH ~ 90%RH (Without Condensation) | |||||||
| Storage Temperature | Temperature -20℃ ~60℃ | |||||||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | |||||||
| Protection Degree | IP65 | |||||||
| Frame Material | iron/ aluminum optional | |||||||
| Installation Environment | Outdoor | |||||||
| Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice. | ||||||||
