Bright Series High-Brightness Outdoor LED Display for DOOH

Bright Series is a 10,000-nit aluminum outdoor LED display for DOOH, with IP66 protection and 90° 3D options.

HIGH-BRIGHTNESS OUTDOOR LED DISPLAY BUILT FOR DOOH

Outdoor DOOH screens must remain visible in direct sunlight while operating reliably through heat, rain, dust and long daily schedules. VisionReal Bright Series is a high-brightness outdoor fixed LED display engineered for these demanding environments.

Its full-aluminum cabinet and aluminum module housing improve heat dissipation, reduce structural weight and help maintain screen flatness. With flexible cabinet sizes, front or rear maintenance and optional 90-degree or curved configurations, Bright Series adapts to roadside billboards, building facades, transport hubs and creative 3D LED billboard projects.

BRIGHT SERIES AT A GLANCE

• Up to 10,000 nits for strong daylight visibility

• Approx. 200 W/m² average power consumption

• Up to 600 W/m² maximum power consumption

• Approx. 77 mm slim cabinet depth

• Approx. 25 kg standard cabinet weight

• IP66 outdoor protection

• Front or rear maintenance

• 90-degree corners, concave and convex configurations

Power, weight and cabinet dimensions vary by pixel pitch, cabinet size, brightness setting, content and project configuration. Final values are confirmed in the approved project specification.

WHY CHOOSE BRIGHT SERIES FOR OUTDOOR DOOH?

High Brightness for Daylight Advertising

Bright Series delivers up to 10,000 nits, helping advertising content remain clear and impactful in strong daylight. Brightness can be adjusted by schedule or ambient-light control according to project requirements, reducing unnecessary output at night while maintaining comfortable viewing.

Full-Aluminum Thermal Design

Both the LED cabinet and module housing use aluminum to transfer heat away from LEDs, driver ICs and power components more effectively. Efficient passive heat dissipation supports stable performance without relying on power-hungry cabinet air conditioning in many installations.

Lower Power and Lower Heat

A typical Bright Series configuration has an average power consumption of approximately 200 W/m² and maximum power consumption of up to 600 W/m². Lower heat generation can reduce thermal stress on LEDs and electronics while helping media owners control long-term electricity costs.

Slimmer and Lighter Installation

At approximately 77 mm deep and 25 kg per standard cabinet, Bright Series reduces structural load compared with conventional heavy outdoor cabinets. Its lighter format also supports easier transportation, handling and installation on building facades and elevated billboard structures.

Front and Rear Service Access

Front or rear maintenance can be selected according to the available service space. LED modules and key internal components remain accessible, allowing technicians to replace parts without dismantling large sections of the display.

Stable Cable-Free Module Connection

LED modules connect directly to the hub system without separate exposed power and data cables between every module. Fewer internal cable connections simplify assembly, reduce potential connection points and support faster troubleshooting.

Outdoor Safety and Reliability

IP66-rated protection helps resist dust and powerful water jets, while the aluminum structure supports corrosion resistance and efficient thermal control. A 5VB fire-resistant configuration is available according to project requirements and final certification specifications.

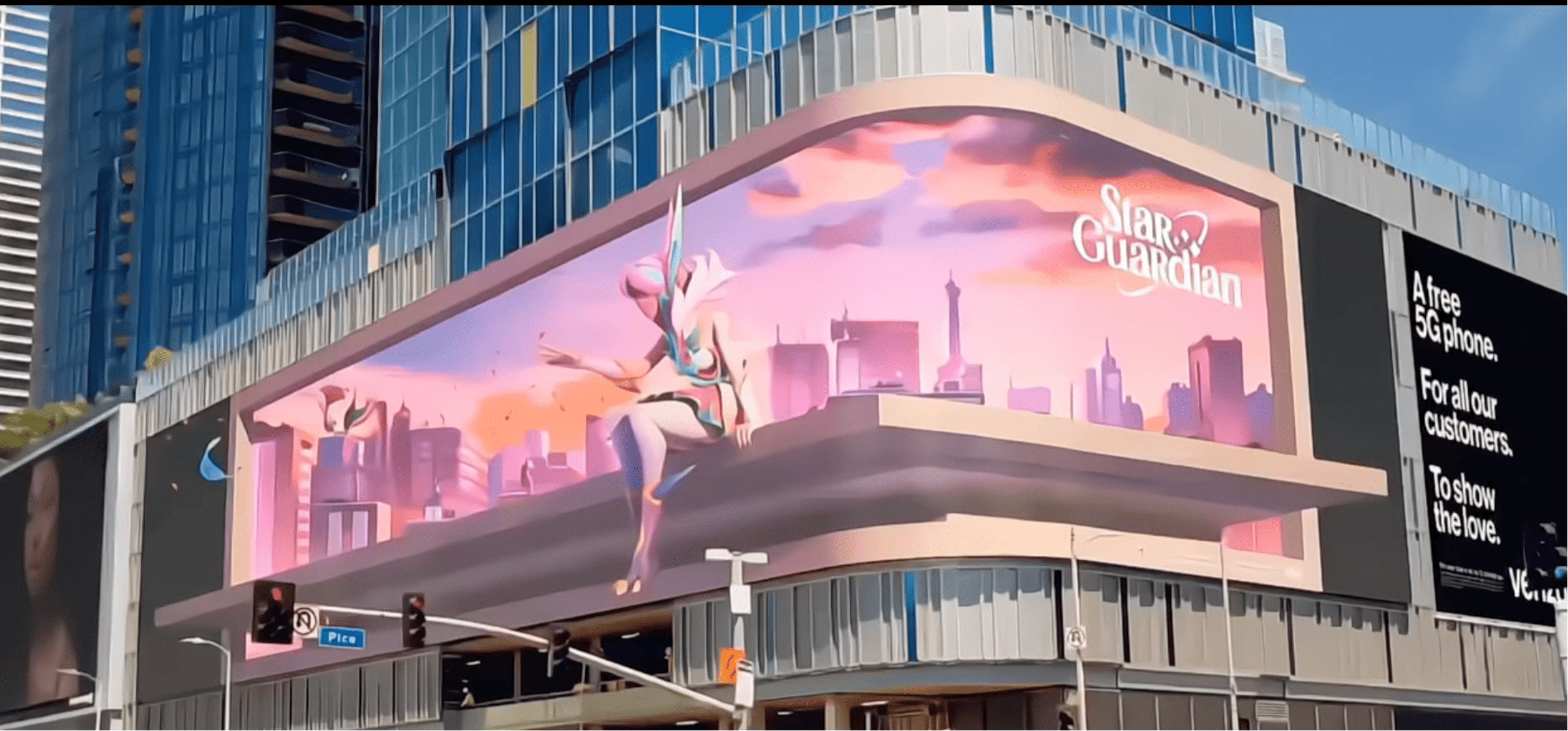

90-DEGREE CORNERS AND CURVED OUTDOOR LED DISPLAYS

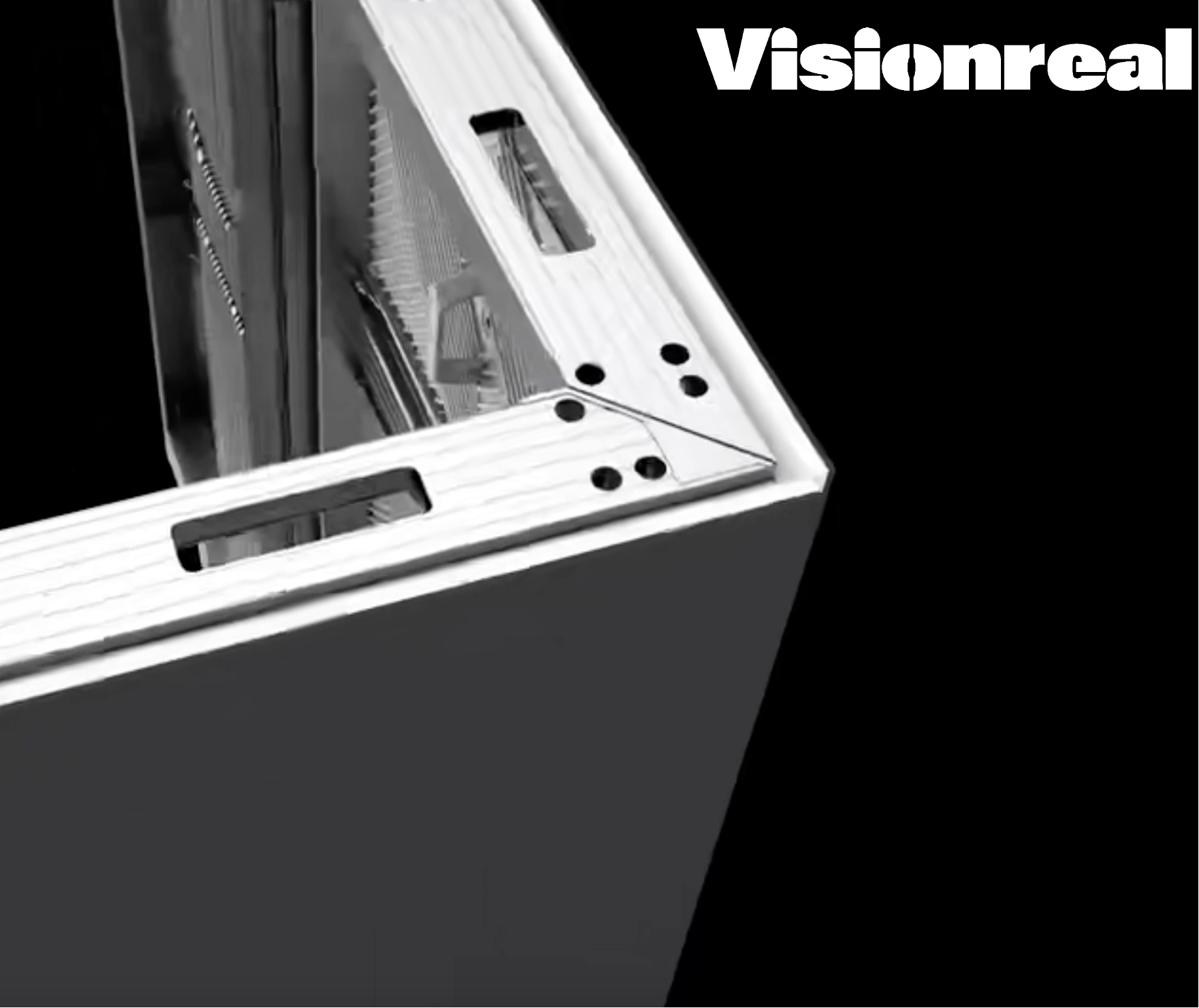

Optional 45-degree cut cabinets can form a clean 90-degree corner for building-edge installations and glasses-free 3D content. The precise corner structure minimizes the visible seam and creates a continuous visual surface across both display faces.

Customized concave and convex configurations are also available for curved facades, columns, landmarks and other non-flat structures. VisionReal designs the cabinet and installation solution around the actual radius, structure and maintenance requirements of each project.

RECOMMENDED APPLICATIONS

• Roadside digital billboards and DOOH networks

• Building facades and rooftop LED displays

• Shopping malls and commercial landmarks

• Airports, railway stations and transport hubs

• 90-degree naked-eye 3D LED billboards

• Curved architectural media facades

A PRACTICAL DOOH ENERGY COST EXAMPLE

For a 200 m² Bright Series display operating 15 hours per day at an average power consumption of 200 W/m²:

• Average connected load: 200 W/m² × 200 m² ÷ 1,000 = 40 kW

• Daily electricity consumption: 40 kW × 15 hours = 600 kWh

• Annual electricity consumption: 600 kWh × 365 days = 219,000 kWh

• Estimated annual electricity cost: approximately €40,230 at €0.1837/kWh

Compared with a conventional outdoor LED display averaging 300 W/m² under the same assumptions, Bright Series could reduce estimated electricity use and energy cost by approximately 33%.

Example electricity rate: Eurostat EU non-household average for the second half of 2025. Actual costs vary by content, brightness schedule, local tariff and operating conditions.

FREQUENTLY ASKED QUESTIONS

What is Bright Series designed for?

Bright Series is designed for permanent outdoor DOOH installations, including roadside billboards, building facades, rooftops, transport hubs, commercial landmarks and creative 3D LED billboard projects.

How bright is the Bright Series outdoor LED screen?

It can deliver up to 10,000 nits depending on pixel pitch and project configuration. Brightness can be adjusted according to ambient light and local operating requirements.

What is the power consumption?

A typical configuration averages approximately 200 W/m² with maximum power consumption up to 600 W/m². Actual consumption depends on brightness, displayed content, pixel pitch and operating conditions.

Can it create a 90-degree 3D LED billboard?

Yes. Optional 45-degree cut cabinets can be combined to create a seamless 90-degree corner suitable for building-corner displays and glasses-free 3D content.

Does it support curved outdoor LED displays?

Yes. Concave and convex configurations can be customized according to the project radius, structure and installation environment.

Is front maintenance available?

Yes. Bright Series supports front or rear service. The maintenance method should be selected according to the installation structure and available service space.

Which pixel pitch should I choose?

The best pixel pitch depends on viewing distance, screen size, content and budget. VisionReal can recommend P2.5, P4.44, P5.71, P6.66, P8 or P10 after reviewing the project conditions.

Can VisionReal customize the cabinet and structure?

Yes. Cabinet size, service access, corner configuration, curve radius and structural interface can be customized around real project challenges.

PLANNING A HIGH-BRIGHTNESS OUTDOOR DOOH PROJECT?

Tell us your screen size, installation location, viewing distance, required brightness and maintenance conditions. VisionReal will recommend the appropriate pixel pitch, cabinet configuration, power system and installation solution.

Get a project-based quote and talk to a VisionReal LED engineer.
