Smooth Curve Shape deliver Immersive Naked Eye 3D
Various Shape Perfectly Match with Various Applications
Full-aluminum Structure Delivers Up to 10,000 nits with Efficient Heat Dissipation
IP66 Protection Adapt to all kind of Weather

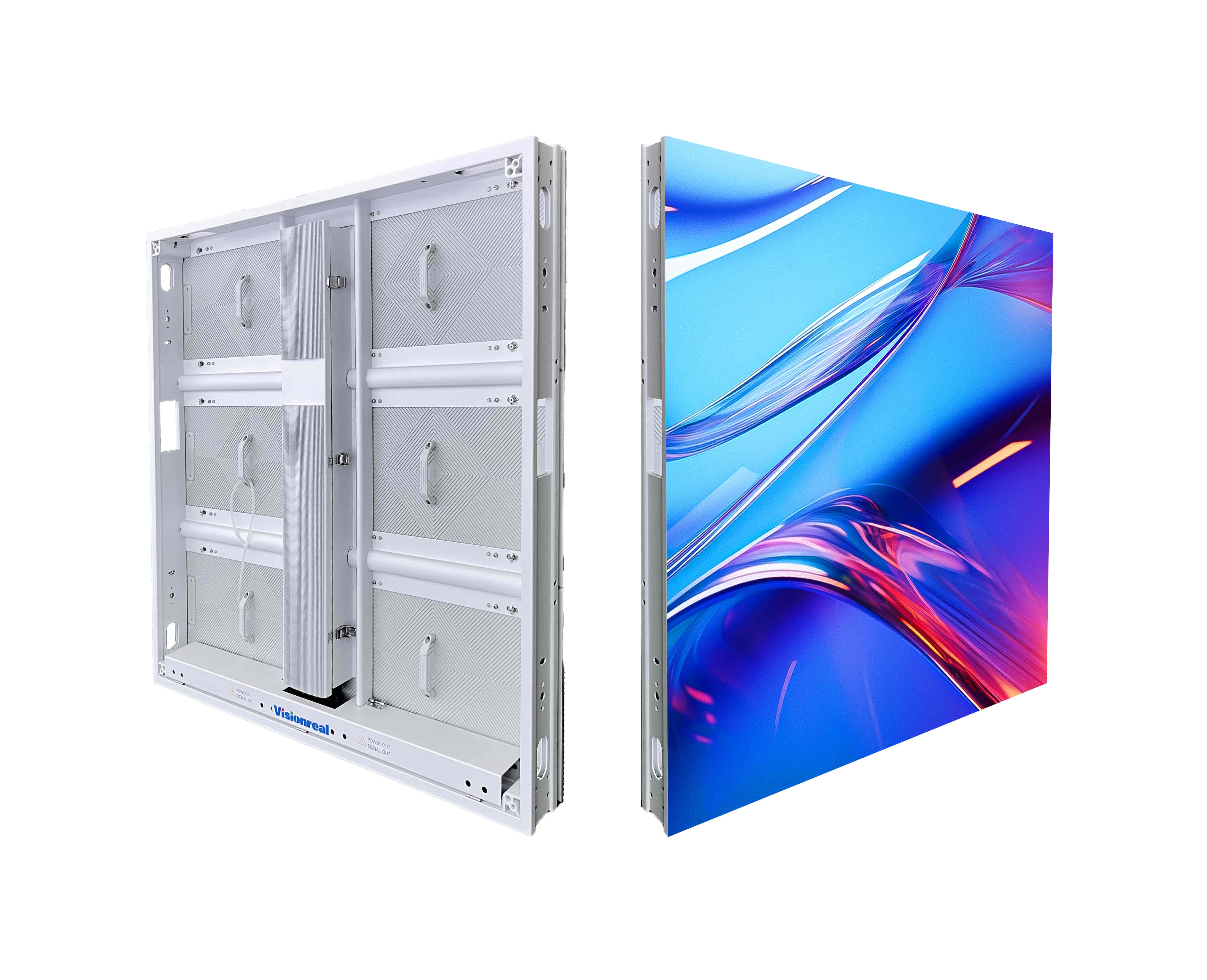

VAPRO Series is a high-brightness outdoor LED display engineered for DOOH billboards, 3D corners and fixed installations.
Its full-aluminum led module and panel structure delivers up to 10,000 nits with efficient heat dissipation, IP66 protection and flexible front or rear maintenance.
EcoBright Series | Energy-saving Outdoor LED Display For DOOH
VisionReal EcoBright series is an energy-saving outdoor LED display developed for digital billboards and long-running DOOH applications.
It delivers brightness of up to 10,000 nits while maintaining average power consumption at approximately 70 W/m². This helps media owners reduce electricity demand, heat generation and long-term operating costs without sacrificing daylight visibility.
Powered by VisionReal Mini DIP Technology
VisionReal Mini DIP is a full-color RGB LED developed specifically for outdoor display applications.
Its integrated optical lens package combines the high-brightness capability associated with traditional DIP LEDs with the high contrast, compact size and lightweight packaging advantages of SMD LEDs.
By combining the core strengths of DIP and SMD technologies, Mini DIP provides a practical balance of brightness, visual performance, energy efficiency and compact construction for outdoor LED displays.
Energy Efficiency
In the reference EcoBright P10 configuration, average power consumption can be configured around 70 W/m² at brightness levels of up to 10,000 nits.
Lower electricity demand can also reduce heat generation inside the display, helping create more stable operating conditions for power supplies, LED modules and electronic components.
Actual power consumption varies according to screen brightness, displayed content, calibration settings, ambient conditions and final project configuration.
Heat High Brightness and Strong Contrast
VisionReal EcoBright series is designed to maintain clear outdoor visibility in strong ambient light. Mini DIP optical packaging helps concentrate light output while supporting deeper blacks and stronger image contrast.
The result is clear text, vivid colors and more visually engaging advertising content during both daytime and nighttime operation.
Designed for Long-running Outdoor Applications
EcoBright is suitable for:
Roadside digital billboards
Urban DOOH networks
Building façade displays
Transportation advertising
Shopping center exterior displays
Sports venue screens
Large-format outdoor media installations
500m2 Electricity Cost Comparison
Reference conditions:
Screen area: 500 m²
Operation: 15 hours per day
Operating days: 365 days per year
Conventional outdoor LED display: 300 W/m² average
EcoBright P10: 70 W/m² average
Electricity tariff: USD 0.15/kWh
| Period | Conventional LED | EcoBright P10 | Estimated Saving |
|---|---|---|---|
| Daily | $337.50 | $78.75 | $258.75 |
| Monthly, 30 days | $10,125.00 | $2,362.50 | $7,762.50 |
| Annual | $123,187.50 | $28,743.75 | $94,443.75 |
| Five years | $615,937.50 | $143,718.75 | $472,218.75. |
| Item | VAPRO-6 | VAPRO-8 | VAPRO-10 |
|---|---|---|---|
| Pixel Pitch (mm) | 6.66 | 8 | 10 |
| Pixel Density (dot/m²) | 22500 | 15,625 | 10,000 |
| Led Module Size | 480x320mm | ||
| Panel Dimension (mm) | 960x960mm or customized size | ||
| Resolution/Panel (dot) (w*h) | 144x144 | 120x120 | 100x100 |
| Weight (kg/set) | 25 | ||
| Brightness(cd/m²) | 10,000 cd/m² | ||
| Lifespan | ≥ 100,000.00 hours | ||
| Pixel Configuration | 16bit | ||
| Maximum Power Consumption (w/m²) | 600 | ||
| Average Power Consumption (w/m²) | 200 | ||
| Control System | Novastar | ||
| Input Voltage | AC100~240V 50/60Hz | ||
| Working Temperature | Temperature -20℃ ~55℃ | ||
| Working Humidity | Humidity 20%RH ~ 90%RH (Without Condensation) | ||
| Storage Temperature | Temperature -20℃ ~60℃ | ||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | ||
| Protection Degree | IP66 | ||
| Frame Material | Aluminum | ||
| Installation Environment | Outdoor | ||
| Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice. | |||
